O2 Regulation

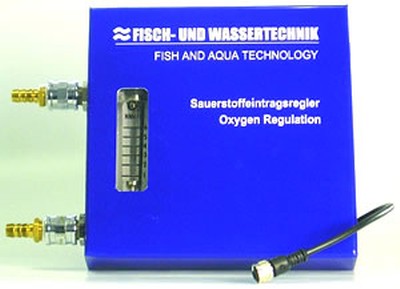

O2-V100 automated Oxygen Regulation

The Oxygen Regulator O2-V100 has to be connected to a Base1-Station. Then it will regulate the oxygen level according to the desired value calculated by the Base-1. The oygen sensor connected to Base-1 is monitoring the oxygen level and passes this information on to Base-1. Base-1 informs the O2 regulator who activates the motor opening and closing a needle valve. A display unit visualises the calculated setting for control purposes.

-Data Sheet:

Power Supply:
Battery 8*1,5V Lithium 23,2Ah alternatively connect 12V DC

Connector plug:
4-Pole plug to be connected to Base-1

Regulator:
PI

Connector O2-Hose:
Any hose connector for standard pneumatic pipes

O2-Volumes:
0 - 100 l/ min.

Setup:
Post and screws on demand

The regulator only works in connection with a Base-1 unit. But for the more sophisticated
user we will publish the interface specification.
