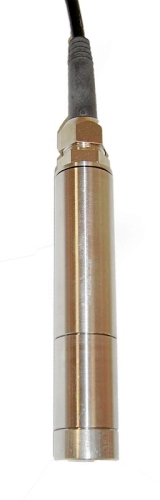

Optical Oxygen sensor
Photometric measurement of dissolved oxygen
This advanced optical oxygen sensor does not have to be calibrated. No flow rate required!
SMART! Order a combi instrument including the optical oxygen sensor + our saturometer. This smart instrument controls the oxygen level considering the total saturation! This avoids an oversaturation caused by oxygen which you can not detect with an oxygen sensor on its own. Over saturation caused by oxygen is considered by many people as harmless as the respiration process of the fish would reduce it. But nonetheless gas bubbles filled with oxygen exist within the fish tissue if the levels are permanently in over saturation.
Data Sheet: |
|
Resolution: |
+/- 0,1mg/L |
Response time: |
90% of the value in less than 60 seconds |
Method: |
Optical Measurement by luminescence |
Range: |
0,00 to 20,00 mg/L |
Interface: |
Only to our base station |
Maintenance: |
|
Mechanics: |
Resin molded sensor protection class IP67 |
Temperature: |
-0 to +60 degrees Celsius |
Calibration: |
Buffer Solution 22 mg CO2 |
Dimensions: |
Diameter : 25 mm ; length : 146 mm |
Weight: |
450g (sensor + cable 3 meters) |
Material: |
Stainless steel 316L |
Maximum pressure: |
5 bars |
Protection: |
IP68 |
;)
